Junior Simba Ring Drilling Equipment - Lateral
Regular price
₹1.00
Junior Simba Ring Drilling Equipment - Lateral
Regular price
₹1.00
DESCRIPTION

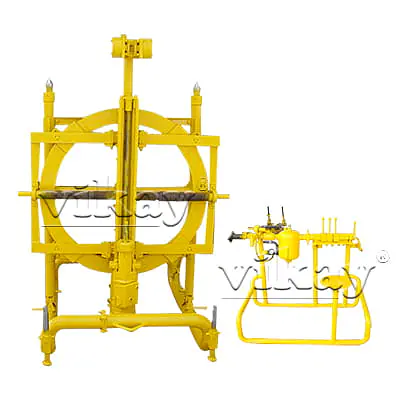

Junior Simba Ring Drilling Equipment - Lateral
Junior Simba - Lateral Movement Version Specially for Parallel Hole Drilling
Also known as Ring Drilling Equipment is designed specially for underground mines and Tunnel to drill in 360° rotation for conventional drilling, at any angle for small mines of 3 Meter radius. The same is easy to dismantle & easy to move from one place to another. Suitable application for drilling, tunneling, drifting & long hole drilling.
Technical Details
| Junior Simba | Standard Version |
| Pneumatic drifter | VK 12 |
| Hole Diameter | 51 - 64 mm |
| Drill Rod Size | R32 |
| Drill Rod Length | 1.20 Meter |
| Drilling Length | 25 Meter Max. |
| Air consumption | 400 CFM @ 7 Kg/cm² |
| Drilling Rate | 4 Minute per Meter |
| Feed Beam | Screw Feed Type BMS-46 |
| Rod Catcher | Pneumatic Type BSP-10 |
| Ring Size | 1500 mm |
| Dimension in mm | 1780 x 1550 x 2600 (L x W x H) |
| Column Bar Height in mm | Closed - 2200 mm, Open - 3700 mm |
| Net Weight - Version | |
| - Standard | 1200 Kgs |
| - Lateral Movement | 1500 Kgs |
| Optional : | |
| a) Mini Version - for Small mines 2.4 Meter Radius | |
Since approvement are made from time to time, the illustration and specifications are subject to change without notice
