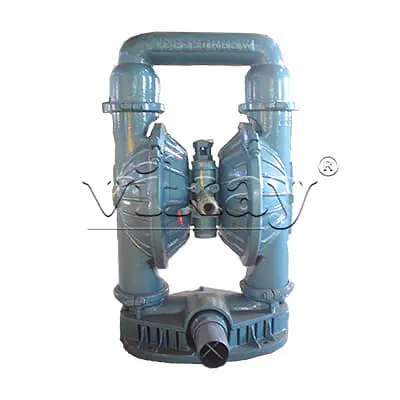

Vikay Pneumatic Slurry Pump for Underground Mines
Double Diaphragm Slurry pump designed for Shaft Sinking, Drives, decline, Ramps, Tunnels & Dams with the Head delivery of 40 70 Mtrs.
Available in two different models
- KPD-250
- KPD-170
Technical Details
| Model | KPD-250 | KPD-170 |
| Weight | 60 Kgs | 25 Kgs |
| Dimensions | 20" x 17" x 34" | 17" x 12" x 24" |
| Discharge | 250 - 400 lpm | 150 - 250 lpm |
| Head Capacity | 50 Meter Vertical | 35 - 40 Meter Vertical |
| Air Consumption | 90 - 100 cfm | 70 - 80 cfm |
| Air Pressure | 6 - 7 kg/cm² 80/90 psig | 5 - 6 kg/cm² 70/90 psig |
| Suction Size | 75 mm 3" | 50 mm 2" |
| Delivery Size | 50 mm 2" | 50 mm 2" |
| Suction Lift | 10 feet | 10 feet |
| Stroke Capacity | 90 - 100 Per Minute | 60 - 80 Per Minute |
| Max. Size of Solid | 10 mm 3/8" | 8 mm 5/16" |
| Lubricant | Servoneum 100 | Servoneum 100 |
| Self Priming | Yes | Yes |
| Submersible | Yes | Yes |
| Material of Construction | Alluminium Alloy Casting | Alluminium Alloy Casting |
Since approvement are made from time to time, the illustration and specifications are subject to change without notice.
