Wagon Drill -Top Hammer version
Description

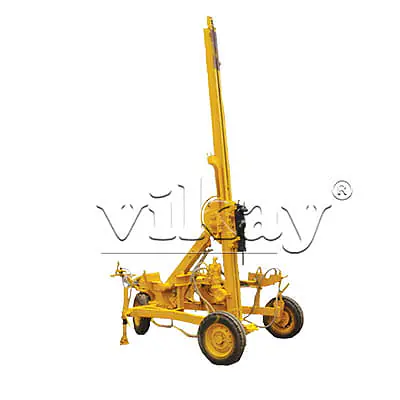

Wagon Drill TH version VKPWD-THÂ

Vikay Pneumatic Wagon Drill suitable for Top Hammer and Down the Hold Drilling.Â
A robust rubber tyre three wheel pneumatic Wagon Drill, with the option of TH version – Top Hammer and DTH Version – Down-the-hole Hammer, which is an alternative to mechanization of hand held drilling.
The Wagon Drill design for production drilling in open-cast mines and quarry, grouting, anchoring with special shortened mast, used for production drilling in underground mines.
Optional – Conversion Kit to convert TH version to DTH Version and Vice-versa.
TH version (Top Hammer)
The TH version of is equipped with the robust Pneumatic Top Hammer with rifle bar rotation model VK-12 Pneumatic Drifter, well known for its simplicity and reliability. Suitable for hole sizes from 48 – 76 mm and depth upto 20 – 40 Meters.
Technical Details
TH Version (Top hammer)
| Pneumatic drifter | VK – 12 |
| Hole Diameter | 48 - 76 mm          |
| Drill Steel | R32, R38, T38 |
| Drill Steel Length    | 1.20 Meter, 2.50 Meter, 3 Meter |
| Air consumption | 400 CFM @ 7 Bar |
 Feed and boom
| Feed type | Chain drive |
| Feed length, total    | 5,430 mm, 4425 mm, 2825 mm |
| Travel length | 3,940 mm, 2200 mm, 1500 mm |
| Feed force | 8 kNÂ Â Â Â Â Â Â Â Â Â Â Â Â Â 1,800 lbf |
| Boom type | Single section Hand Operated Hyd. Cylinder |
| Drill control panel | Side mounted |
 Carrier
| Traction type | Pneumatic wheel drive |
| Tramming speed, max    | 2 km/h          1.3 mph |
| Traction force, max | 7.8 kN Â Â Â Â Â Â Â Â Â 1,750 lbf |
| Hill climbing ability | 20 degrees |
| Track oscillation | N/A |
| Ground clearance | 310 mm          1†|
